Electrical Silicon Steel

0.23mm CRGO Grain Oriented Electrical Silicon Steel Coil for Transformer (2).jpg

0.23mm CRGO Grain Oriented Electrical Silicon Steel Coil for Transformer (1).jpeg

0.23mm CRGO Grain Oriented Electrical Silicon Steel Coil for Transformer (1)(2).jpg

0.23mm CRGO Grain Oriented Electrical Silicon Steel Coil for Transformer (1)(1).jpg

0.23mm CRGO Grain Oriented Electrical Silicon Steel Coil for Transformer (3).jpg

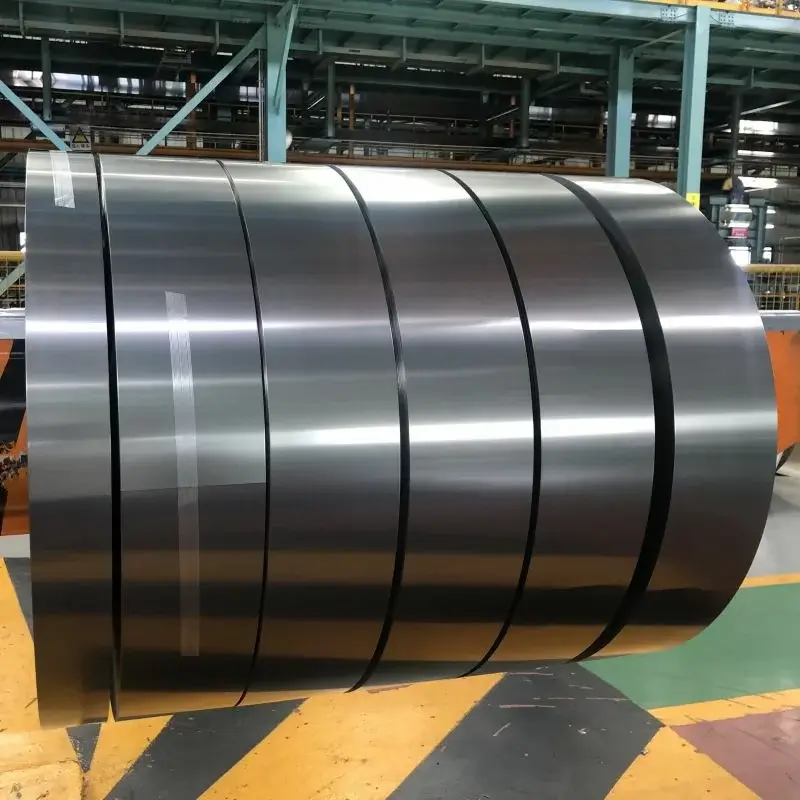

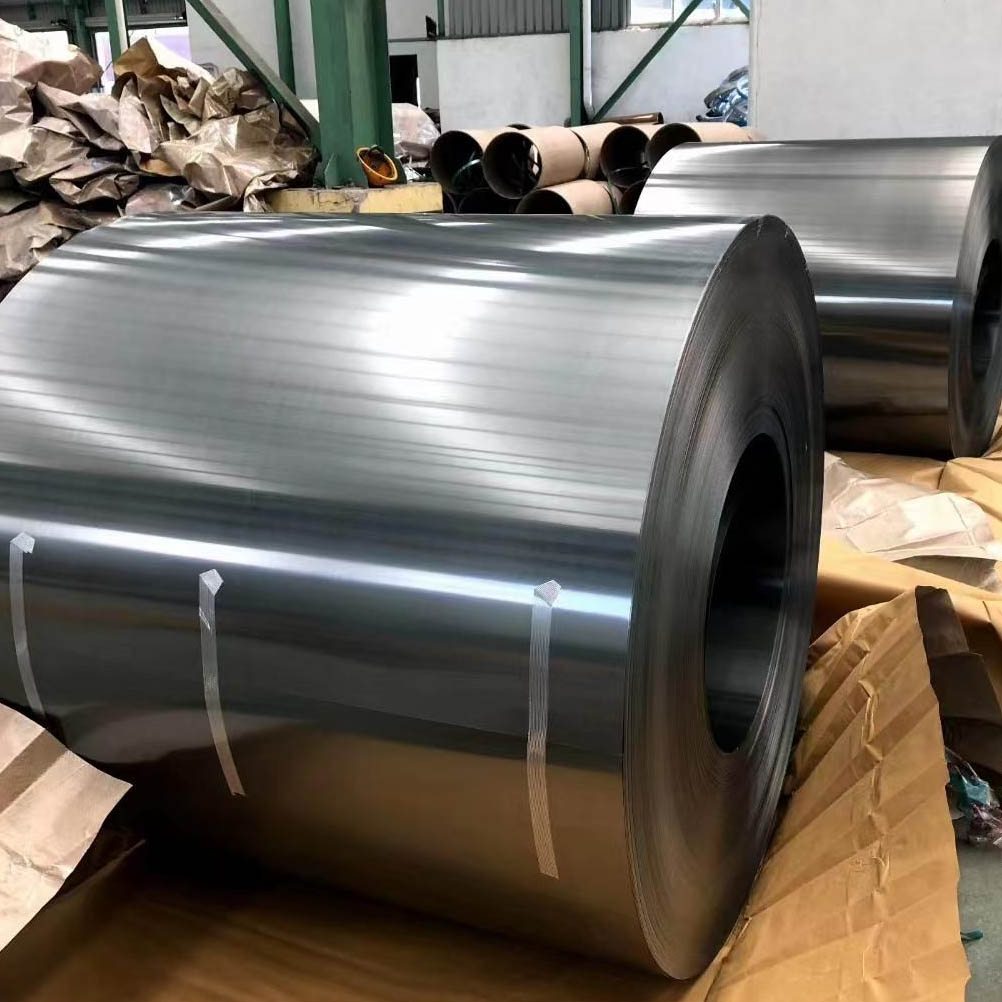

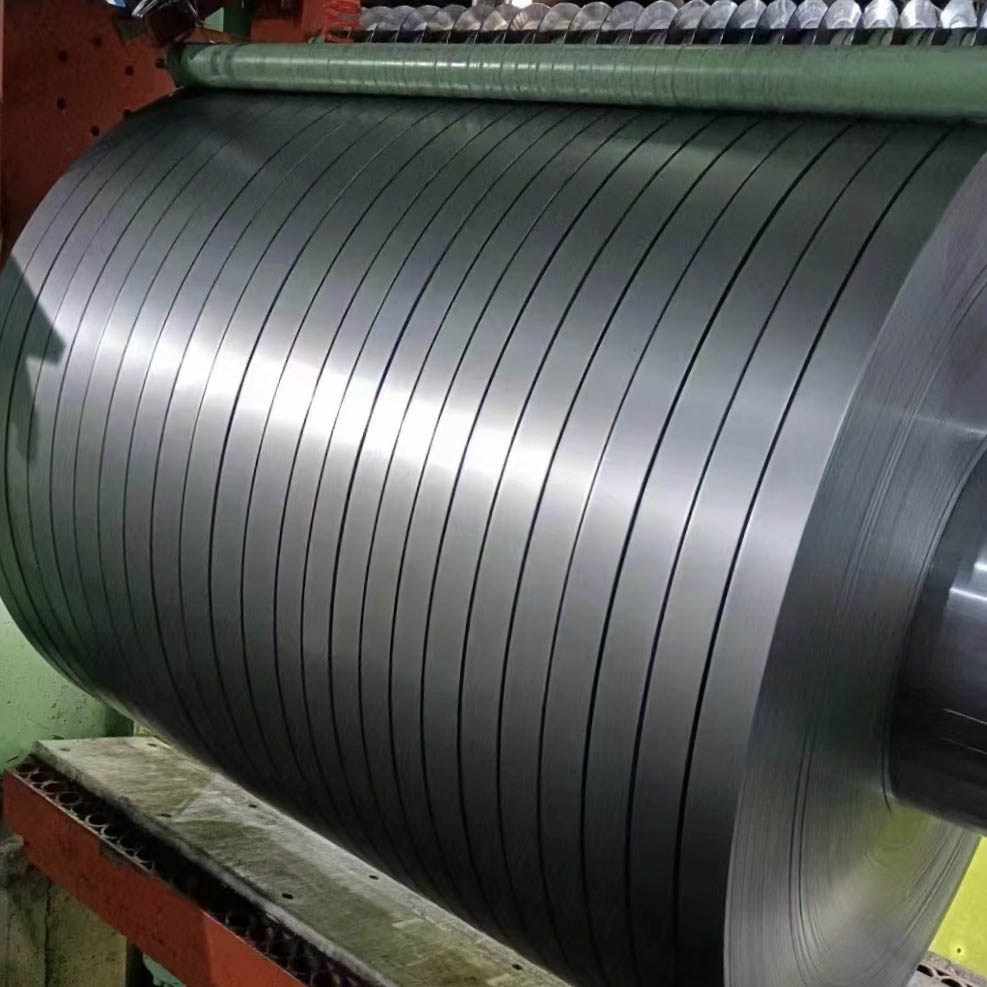

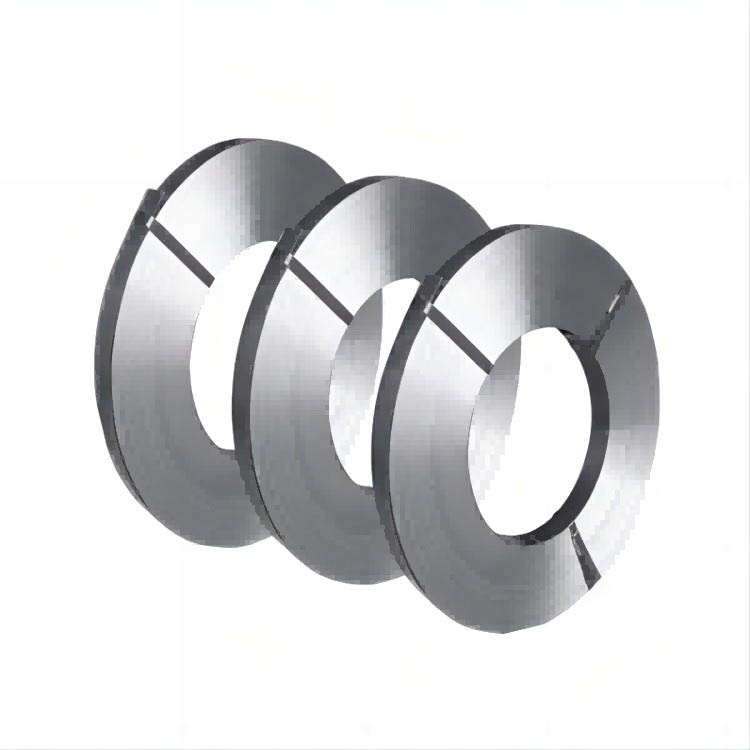

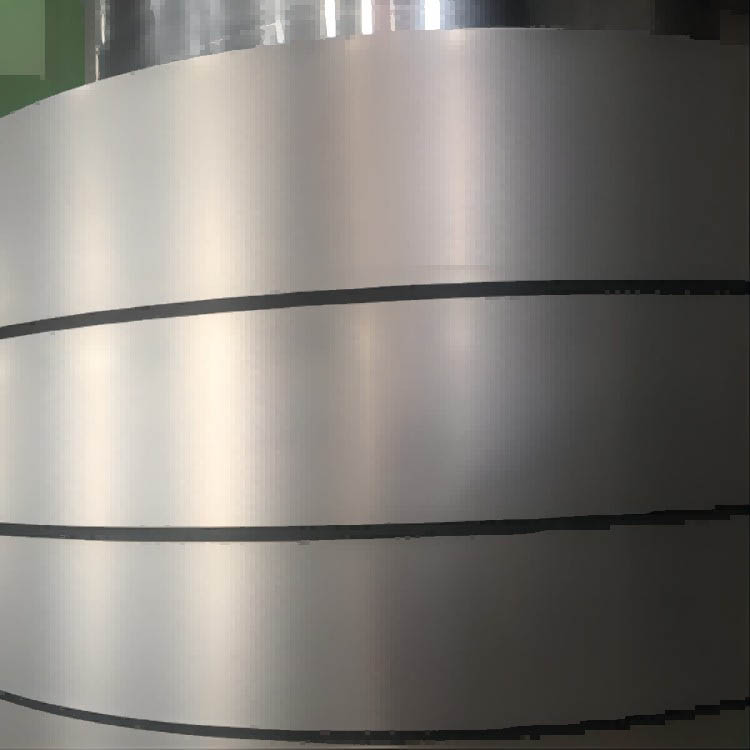

0.23mm CRGO Grain Oriented Electrical Silicon Steel Coil for Transformer

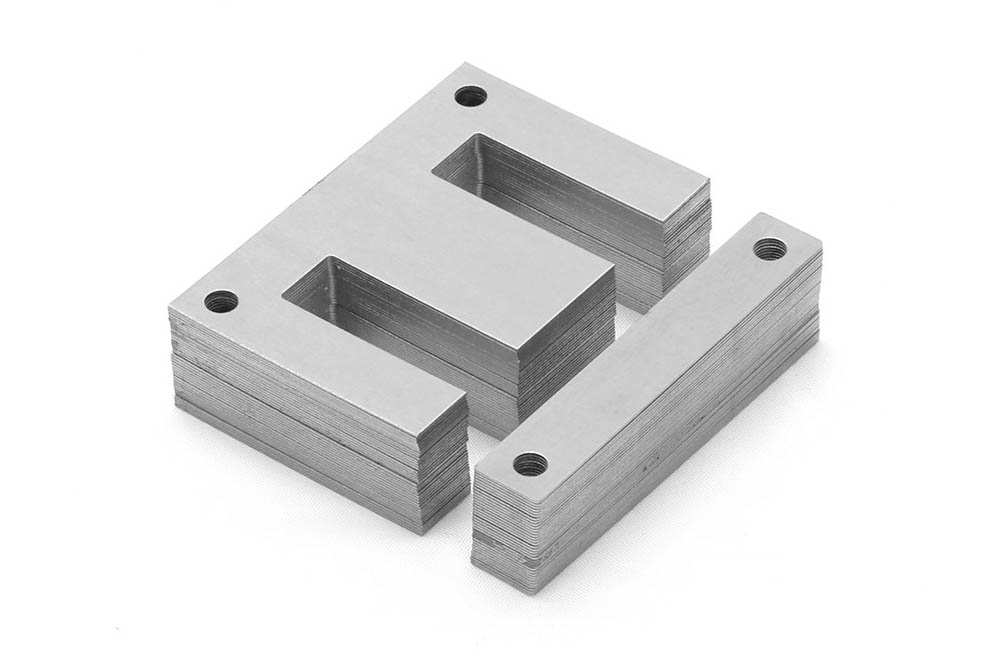

Electrical steel plate (also known as silicon steel sheet or silicon steel sheet) refers to a silicon iron soft magnetic alloy with extremely low carbon content (after annealing, the carbon content is below 0.005%), generally with a silicon content of 0.5% to 4.5%. Adding silicon to iron can improve its electrical resistivity and maximum permeability. Mainly used to manufacture iron cores for various transformers, motors, and generators. Electrical steel plates are divided into two categories, namely oriented electrical steel plates and non oriented electrical steel plates.

Wall thickness: 0.23, 0.27, 0.30, 0.35mm
Width: 600～1200mm
Iron loss: from0.75~120w/kg
Grade: M3, M4, M5, M19, M36, 23Q110, 30Q120, 35Q145, 35WW230, 35WW250, 35WW270

product details

SMSTEELproduct description

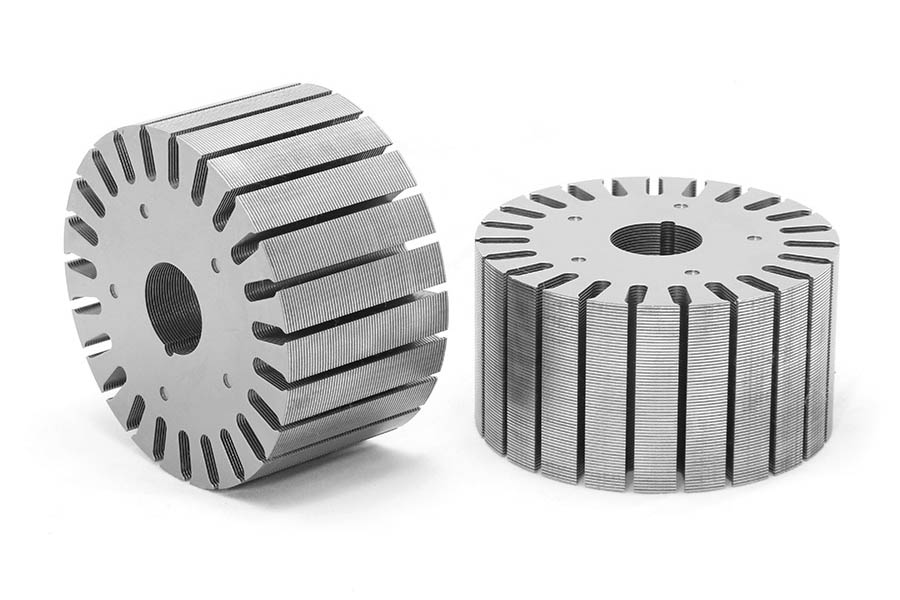

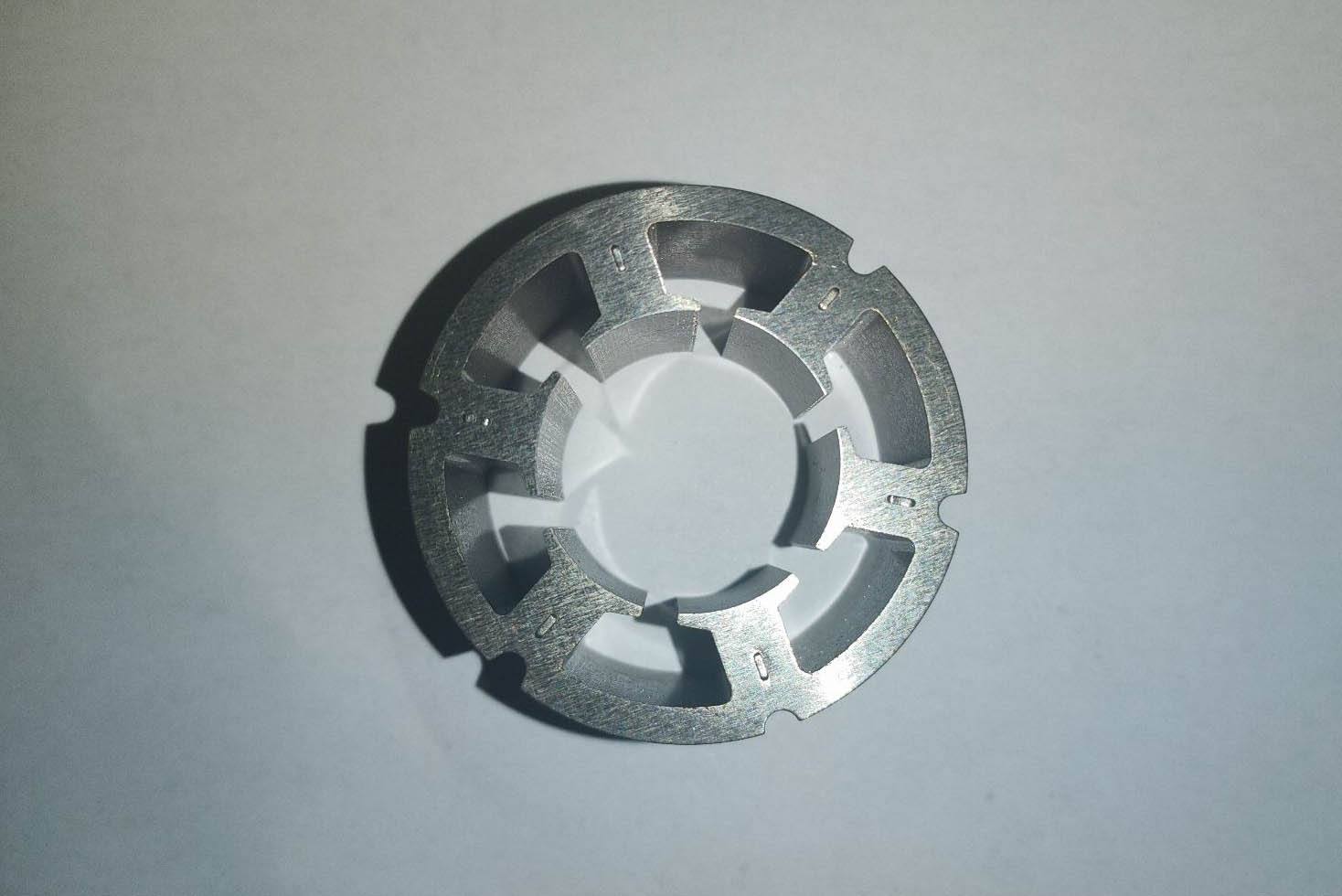

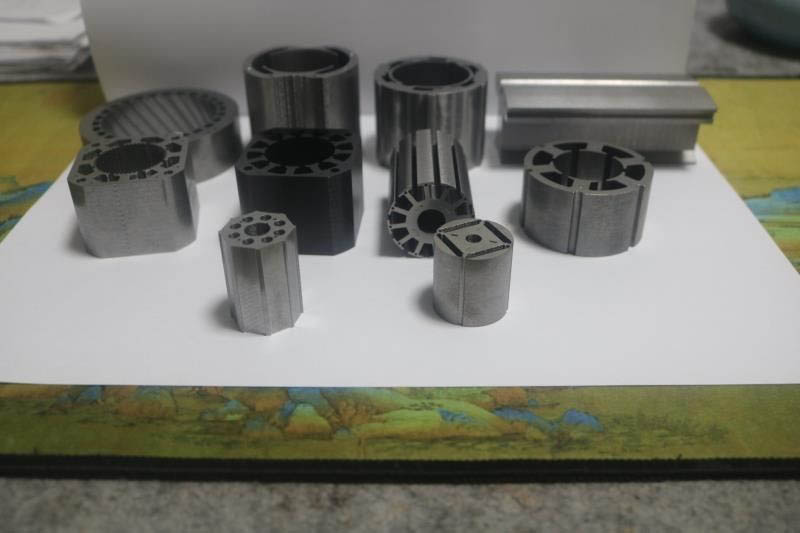

Cold rolled non oriented silicon steel sheets are mainly used as iron cores for motors and small transformers, and are essential soft magnetic alloys in power, electronics, and military industries. It has the largest usage in magnetic materials and is an important energy-saving metal functional material. The demand for cold-rolled non oriented silicon steel in the market is steadily increasing.

SMSTEELProducts parameter

pe	Grade	Thickness	Available width range	ID	Density	P17/50Max.Core Loss	B8Min.Induction
pe	Grade	(mm)	(mm)	ID	(kg/dm3)	(W/kg)	(T)
Common Type	23/110	0.23	700-1200	508	7.65	1.1	1.8
	27/120	0.27				1.2	1.8
	30/120	0.3				1.2	1.8
	30/130					1.3	1.8
	30/140					1.4	1.8
	35/135	0.35				1.35	1.8
	35/145					1.45	1.8
	35/155					1.55	1.8
High Induction Type	23/090	0.23				0.9	1.87
	23/095					0.95	1.87
	23/100					1	1.87
	27/095	0.27				0.95	1.88
	27/100					1	1.88
	27/110					1.1	1.88
	30/100	0.3				1	1.88
	30/105					1.05	1.88
	30/110					1.1	1.88
	30/120					1.2	1.88
	35/135	0.35				1.35	1.88
	35/155	0.35				1.55	1.88
Domain Refined High Induction Type	23/080	0.23				0.8	1.87
	23/085					0.85	1.87
	23/090					0.9	1.87
	27/090	0.27				0.9	1.87
	27/095	0.27				0.95	1.87
NOTE: Detecting Basis GB/T3655-2000 P17/50 means core loss of sample per kg at max. magnetic induction 1.7T and frequency 50HZ B8 means magnetic induction corresponding to 800A/m magnetic field intensity

SMSTEELGrain-oriented Electrical Steel

Varieties	Common type	High induction type	Domain refined high induction type
Large motors	√	√
Large transformers	√	√	√
Medium and small transformers	√	√	√
Distributing transformers	√	√
Voltage regulator	√	√	√
Reactor and magnetic amplifier	√	√
IF transformer		√
Mutual inductor	√	√
TV transformer	√	√
Radio transformer	√	√
Radio broadcast transformer		√

SMSTEELMechanical Property

Mechanical Property
Grade	Yeild Strength(N/mm2)	Ultra-Tension Strength(N/mm2)	Ductility(%)	Hardness(HV1)
M35W230	430	560	20.0	225
M35W250	415	550	20.5	220
M35W270	400	515	20.5	215
M35W300	360	480	21.5	195
M35W360	350	480	23.5	190
M35W440	275	420	27.5	165
M35W550	265	415	33.5	160
M50W250	430	560	19.0	230
M50W270	410	550	21.5	225
M50W290	395	545	22.5	220
M50W310	385	510	24.5	210
M50W350	350	475	26.5	190
M50W400	320	460	36.0	170
M50W470	295	425	35.0	160
M50W600	280	410	37.0	140
M50W800	285	405	38.5	135
M50W1300(D)	250	360	40.0	115

SMSTEELInsulating Coating

Insulating Coating
Coating types	M11	M21
Component	Chromium containing , semi organic coating	Chromium free, semi organic coating
Coating thickness(μm)	0.7~1.5	0.8~5.0
Interlayer resistance(Ω•mm2 /slice)	≥100	≥100
Adhesive property	Class A or class B	Class A or class B
Punching property	Excellent	Excellent
Anti rust property	Excellent	Excellent
Heat resisting property	Resistant annealing at 750 C, N2 protection, for 2h	Annealing resistance in general

SMSTEELFields of Applications

Fields of application		Grain-oriented electrical steel			Non-oriented electrical steel
		Series G	Series P	Series R	Series A			Series AH		Series AR	Series AT
		Series G	Series P	Series R	230~400	440~700	800~1300	230~470	600~1000	Series AR	Series AT
Rotators	Large-sized motors	√			√
	Medium-sized motors				√	√		√
	Compressor motors				√	√	√	√	√	√
	General motors				√	√	√	√	√	√
	Small-sized precision motors				√	√	√	√		√	√
	Motors for electric cars				√			√		√	√
Static device	High-frequency motors				√			√			√
	Large-sized transformers	√	√	√
	Small-sized power transformers	√	√	√	√	√	√	√	√	√
	Transformers for instruments	√	√		√
	Reactors and magnetic amplifiers	√	√	√	√
	Power switches				√
	Transformers for welding					√	√		√
	Voltage regulators				√	√	√	√	√	√
	Magnetic sealers	√	√		√	√
	Electromagnetic devices for accelerators	√	√			√		√

SMSTEELQ&A

Q: What is silicon steel? What is electric steel?

A: Electric steel is magnetically soft material among functional material, and is most wildly used. Generally speaking, silicon steel refers to electric steel with silicon content between 0.5%~6.5% Si. The general electric steel also includes the part that contains little silicon (Si<0.5%). However, nowadays the 2 concepts are not clearly defined, and can be interchangeable.

Q: Classification of electric steel

A: It is roughly classified into hot-rolled electric steel and cold-rolled electric steel. Zhongyuantong steel produces cold-rolled electric steel, which can be further classified into oriented electric steel and non- oriented electric steel.

Q: What is magnetic field?

A: The space field for the acting force between the two magnetic poles is described as magnetic field strength H, the unit is A/m (Ampere/meter). It is the driving primary field produced by external input electric current after the electric steel is made into motor.

Q: Difference between electric steel B50A300 and B50AR300

A: B50A300 is whole processed product. It can be put into use after being purchased or annealing (reducing the loss through stress relief and construction perfection). But B50AR300 must go through annealing before use.

Q: Difference between whole processed silicon steel and semi- processed silicon steel

A: The target of whole processed non-oriented silicon steel annealing is to achieve targeted magnetic property (guarantee value), with the consideration of mechanical property required by stamping and the surface coating. The target of semi-processed product annealing is to achieve the mechanical property required by stamping. The manufactured magnetic property is so poor that the user has to do annealing and bluing to the magnet core so as to achieve the required magnetic property and surface insulation. There can be coating on the semi-processed non-oriented electric steel (applied in Japan market) or no coating (applied in American market, CRML).

Q: Influence of electric steel hardness on product process property

A: The mechanical property of the material has direct influence on the processing property. Various electric steel materials are used in various industries according to their characters. Processing mold and mold adjustment are critical to processing property. Zhongyuantong steel maintains the stability of product mechanical property and guarantees the user’s processing property.
