Coated Steel
Electrolytic Tinplate ETP and TFS Tin Clad Steel or for Packaging

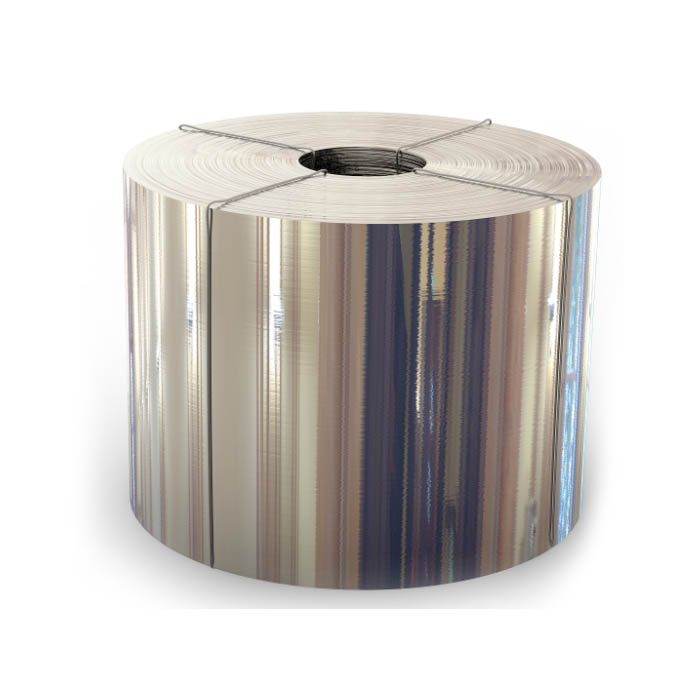

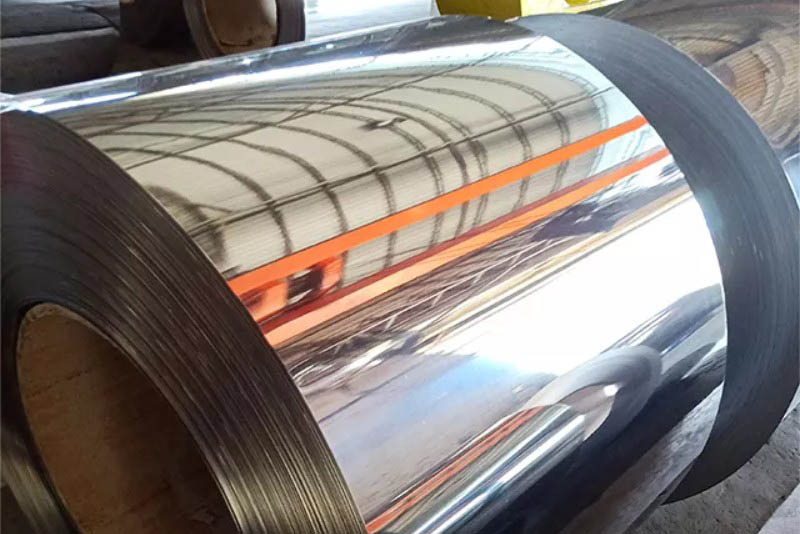

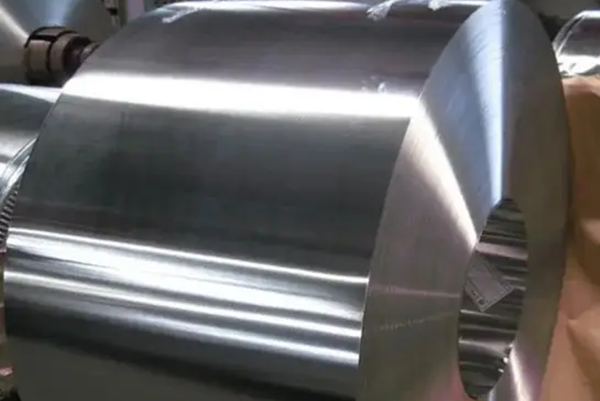

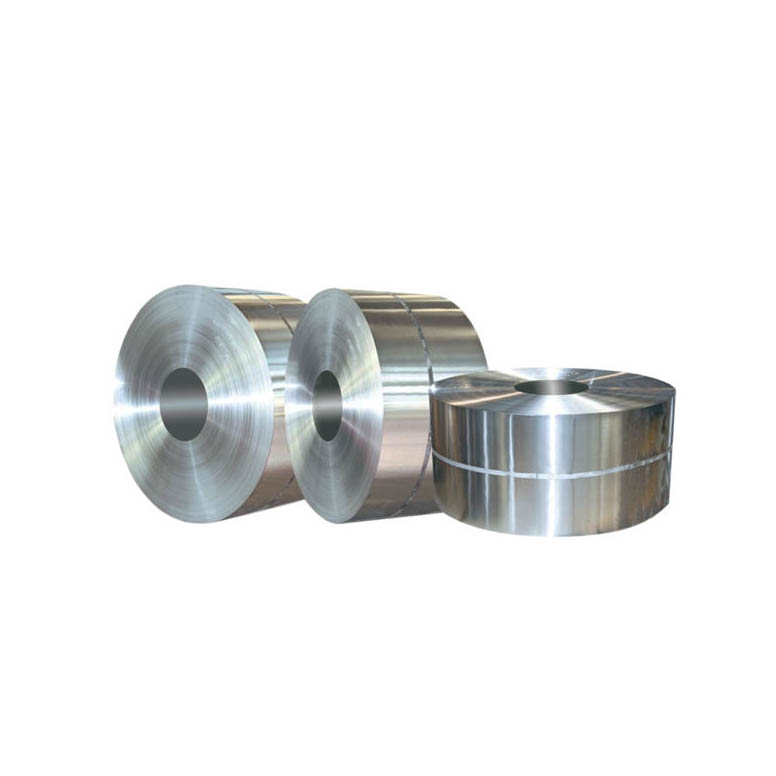

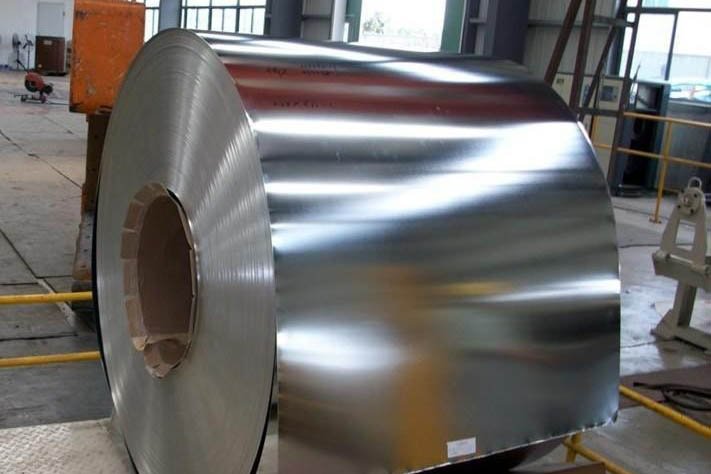

SMSTEELTinplate/ Tin coils MORE DETIALS
Product |
Tinplate/ Tin coils |
Standard |
GB/T 2520-2008, JIS G3303-2008 ,DIN EN 10203-1991 and ASTM A623M-2011 |
Material |
SPCC,MR,SPCH |
Thickness Available |
0.135-0.7mm (tolerance -/+0.01 mm) |
Width Available |
300~1250mm (Tolerance: 0~3mm) or as per customers' requires |
Coils ID |
508/610 |
Tin coating |
2.8g/2.8g, 5.6g/5.6g, 2.8/5.6,2.0/2.0 gr/m² or according to customer's requirement |
Temper |
T2, T2.5, T3, T3.5, T4,T5 ,DR7,DR7M,DR8 BA & CA |
Annealing |
CA(Continuous annealing) and BA(Batch annealing) |
Surface |
Bright/Stone/Silver finish with passivation treatment; DOS oil |
usage |
Widely used for metal packaging industry. |
Certificate |
ISO, BV, SGS |
SMSTEELProduct advantages
Tin-coated sheet has the advantages of being odourless, non-toxic, lightweight and easy to work and shape. It can also be printed with various patterns to beautify products, making it widely used in industries such as food canning, electronic devices and chemical paint.
SMSTEELproduct description
Tinplate can be found everywhere in our household. Tinplate concerns thinly-rolled sheet steel on which a thin layer of tin is applied.
This layer of tin protects the metal against corrosion. Tinplate is often used as packaging material. Think of aerosols/spray cans, beverage cans, bottle caps and crown corks, but also paint cans as well as wrapping paper for chocolate and candies.
Tinplate is very well-suited for recycling purposes, as opposed to plastic and other synthetic packaging materials. Like many other metals, tinplate is 100% recyclable. The sustainable and circular character of tinplate contributes to the large-scale usage of tinplate as packaging material, such as in the food industry.

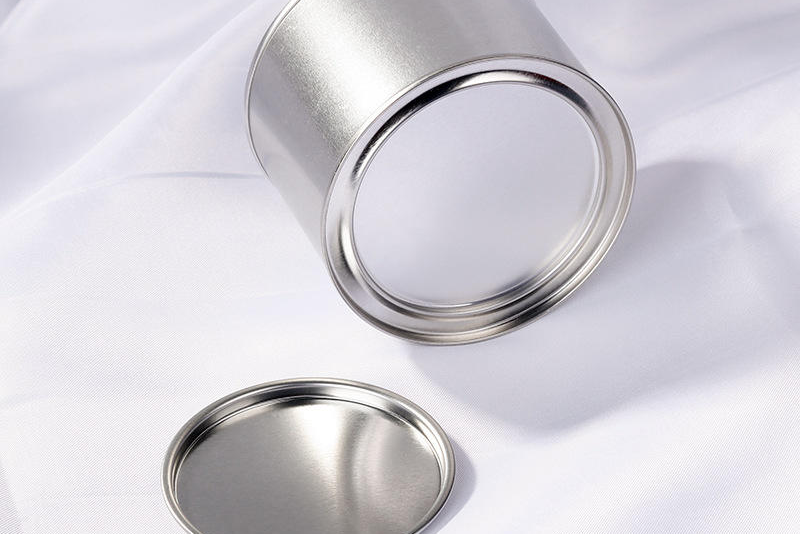

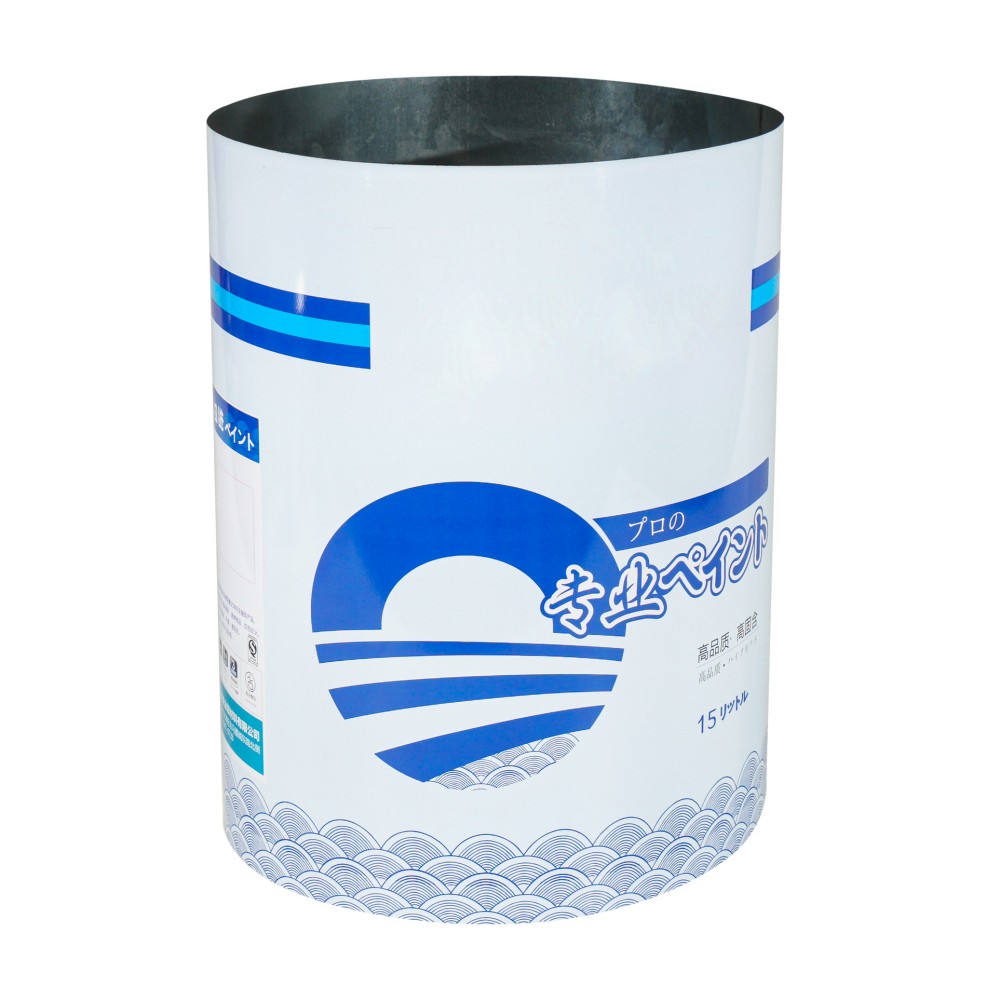

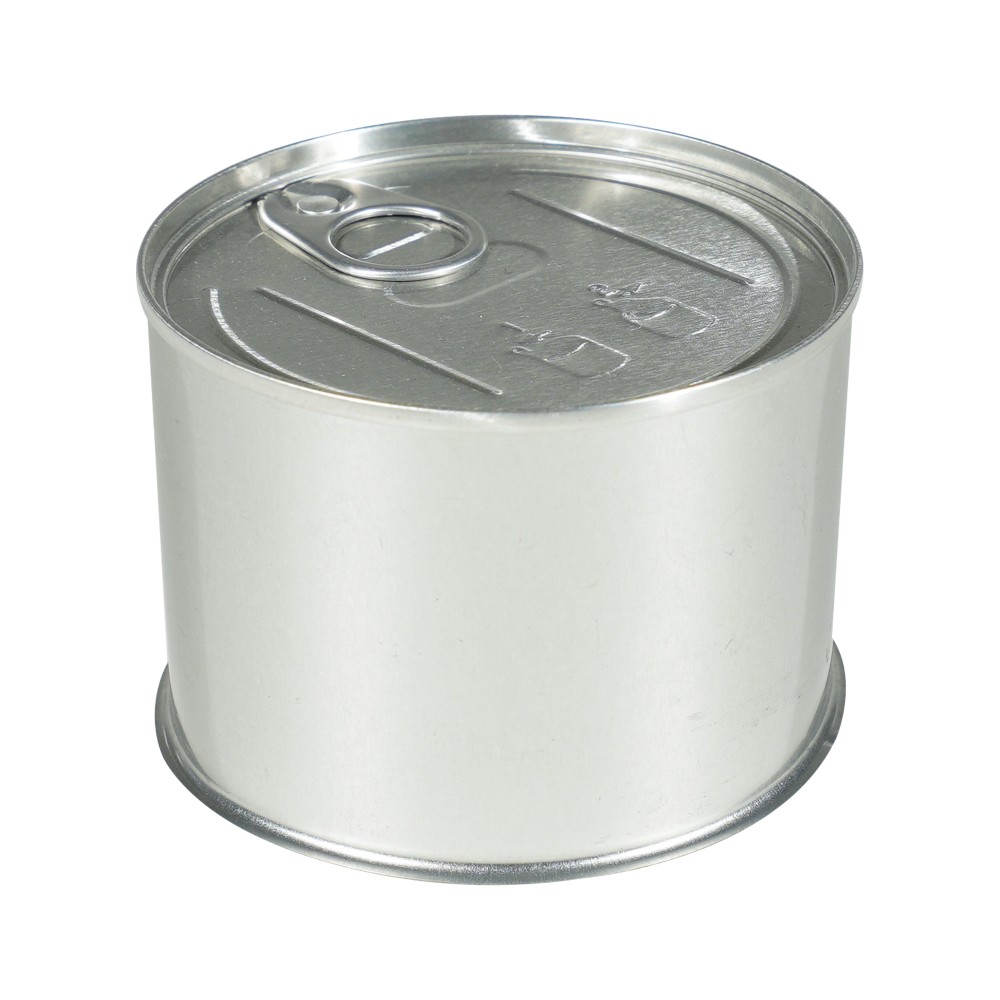

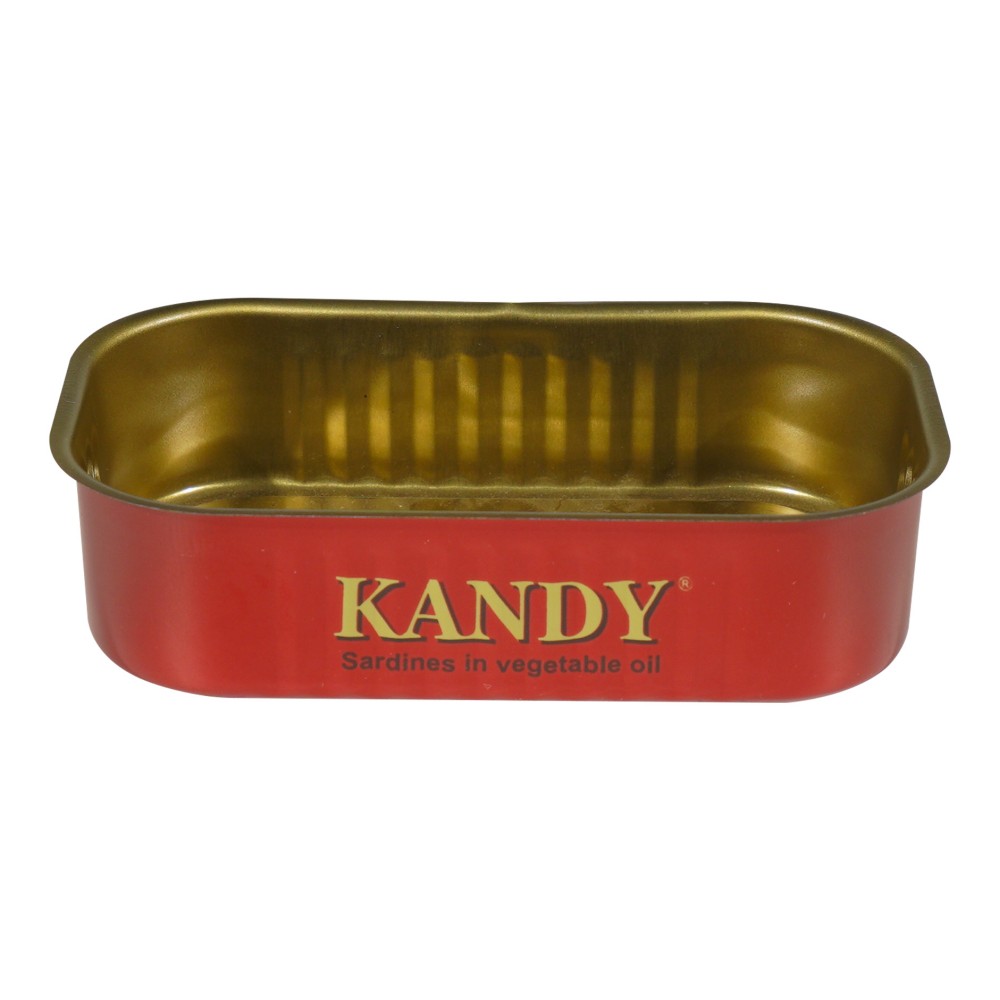

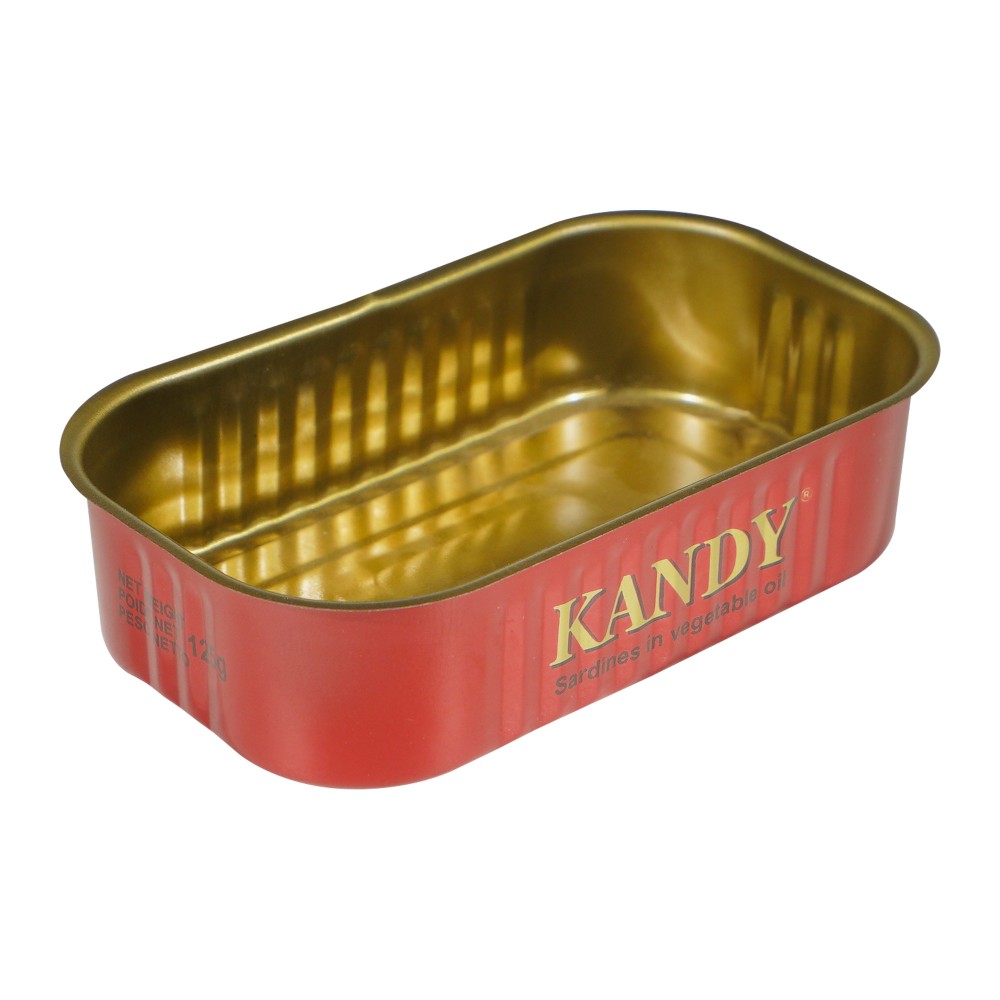

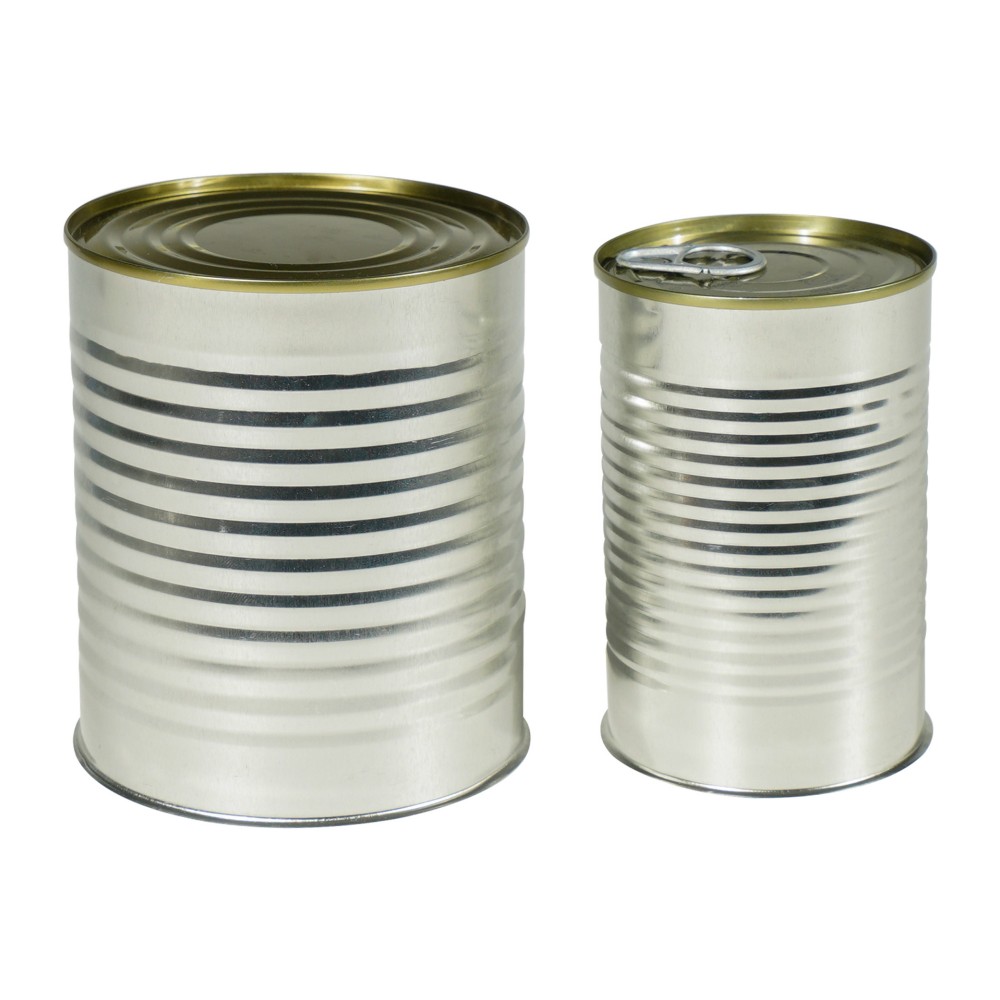

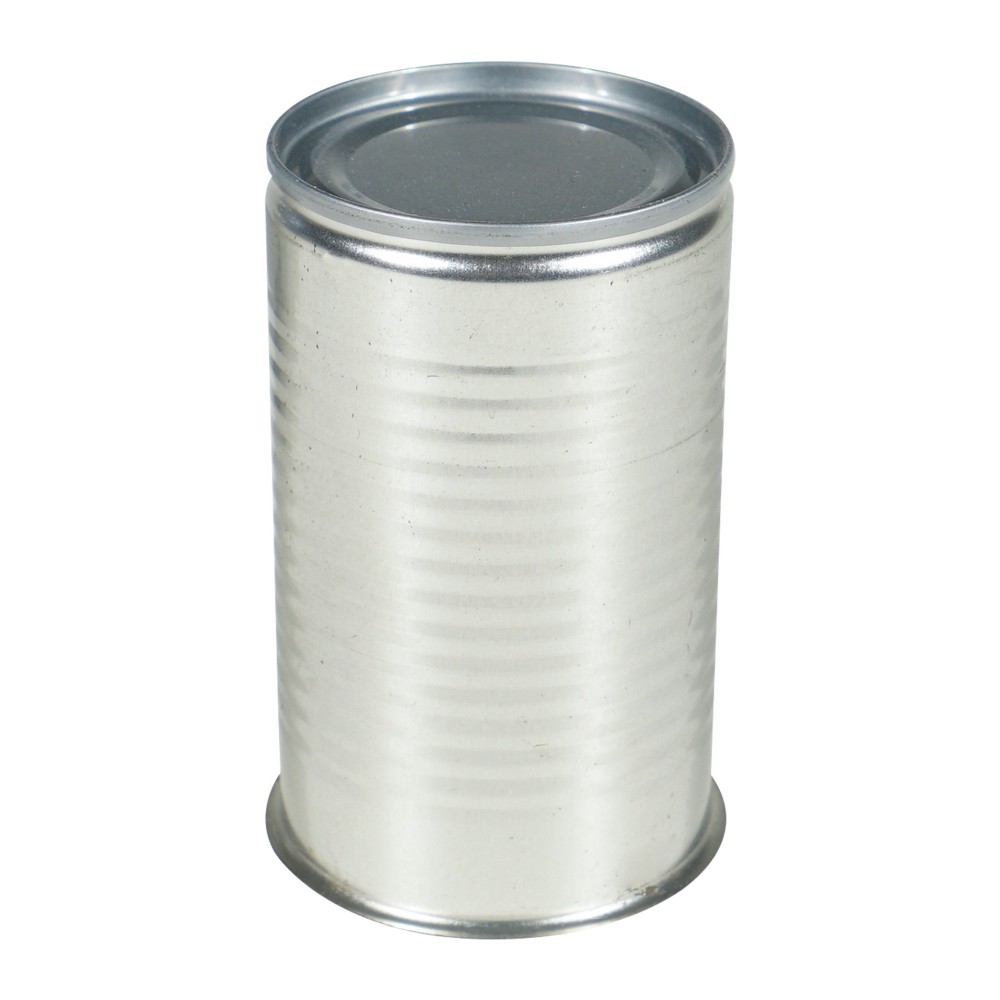

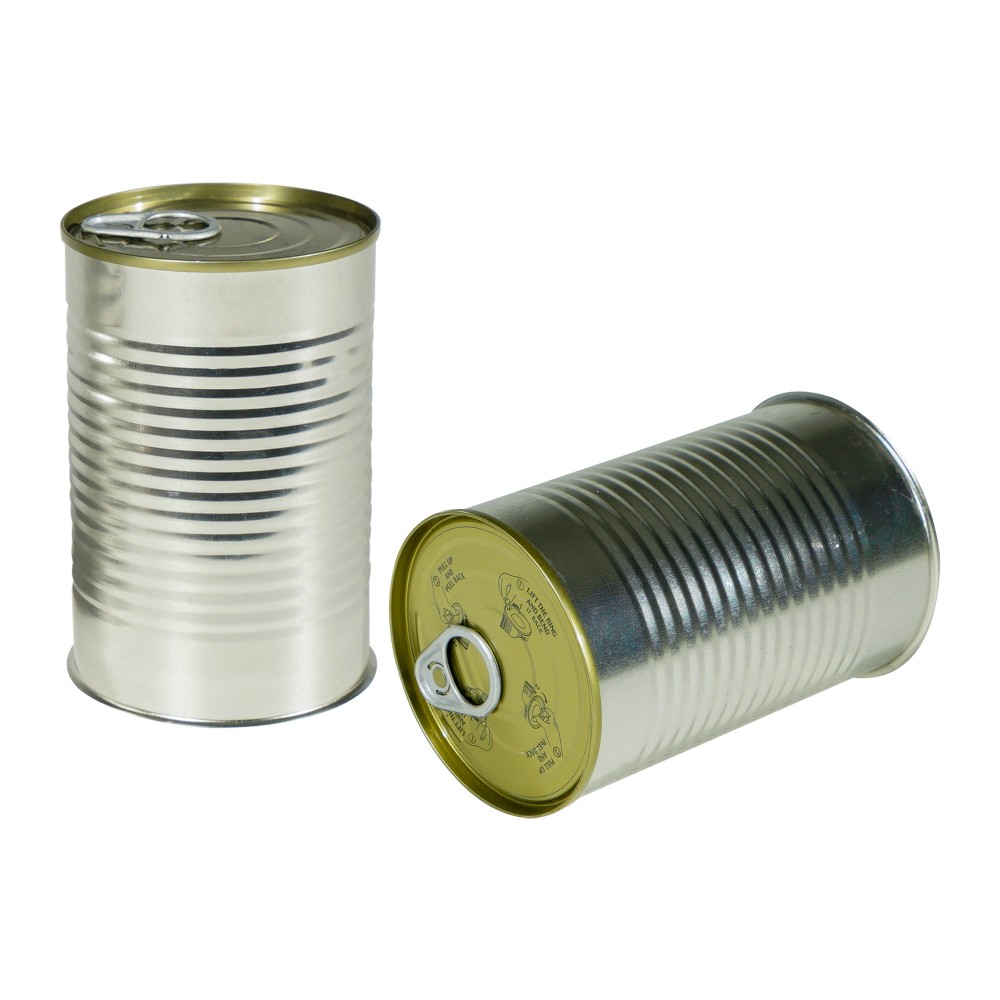

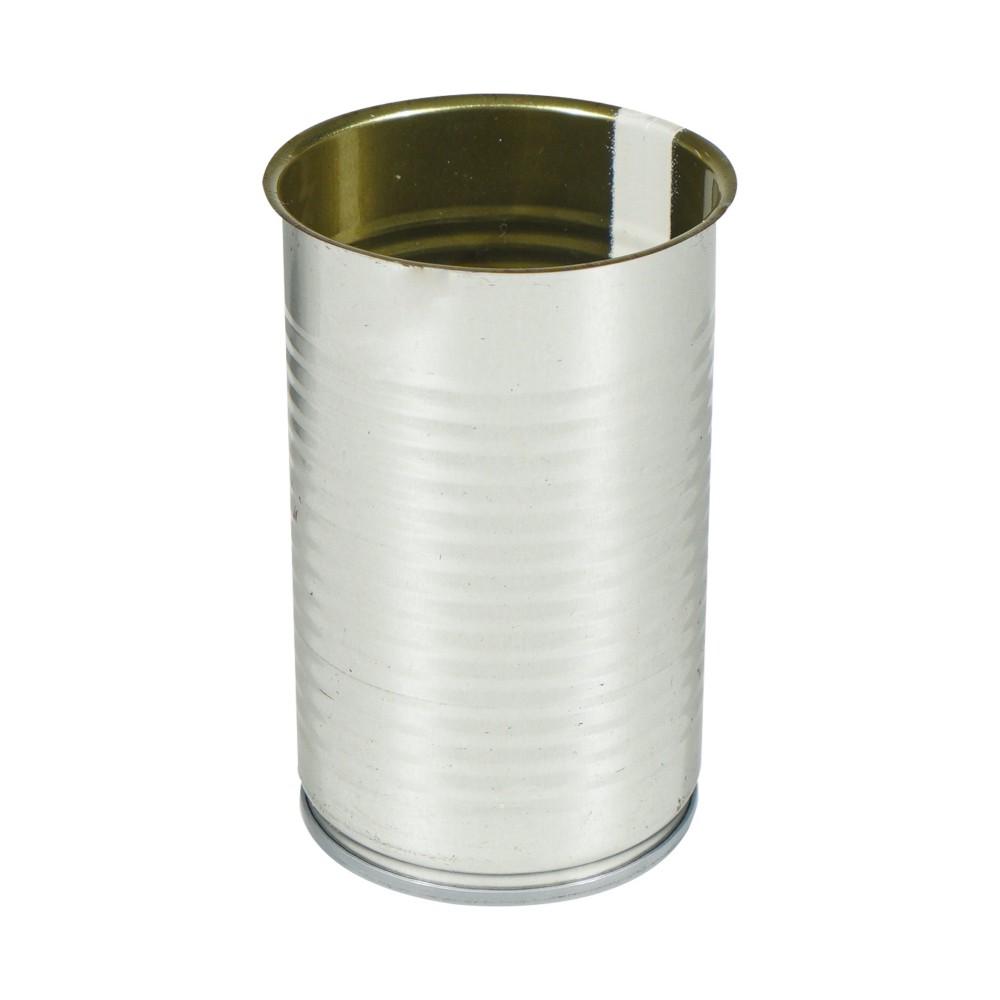

Tinplate is used for making all types of containers such as food cans, beverage cans, 18-liter cans, and artistic cans. Its applications are not limited to containers; recently, tinplate has also been used for making electrical machinery parts and many other products

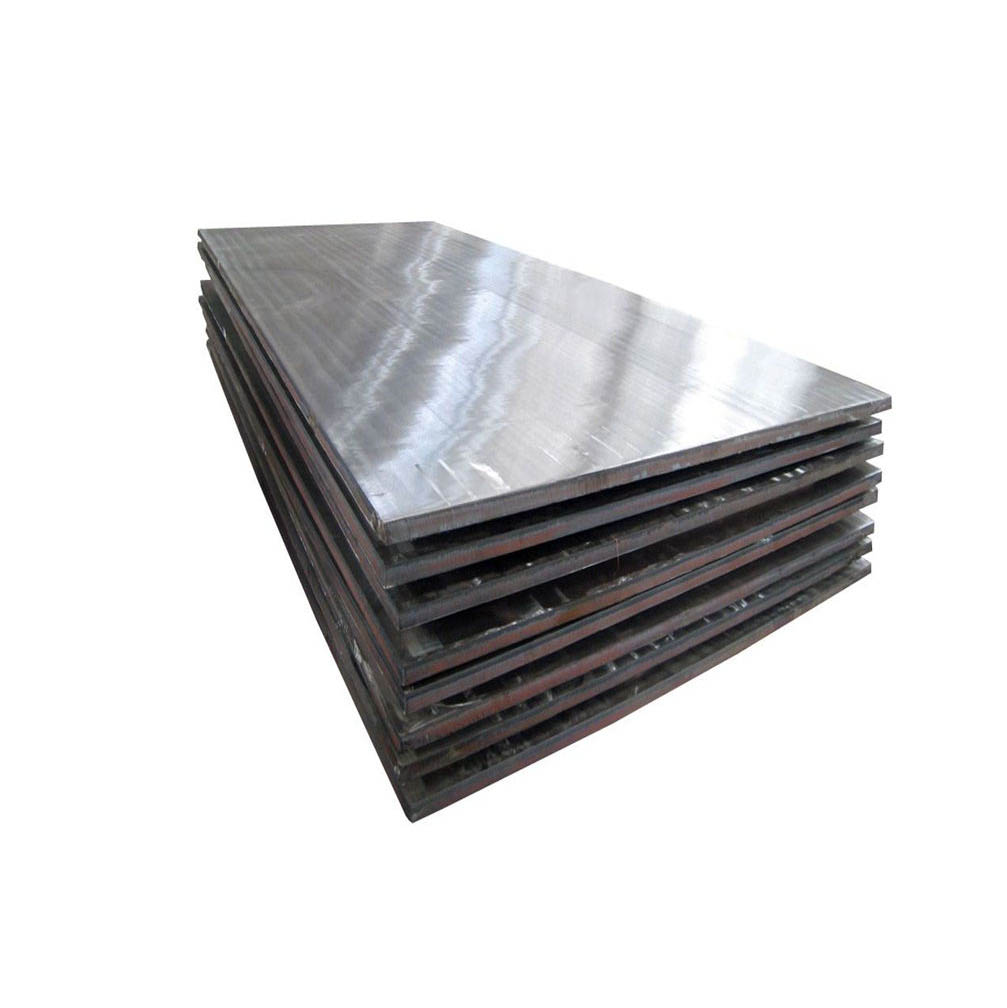

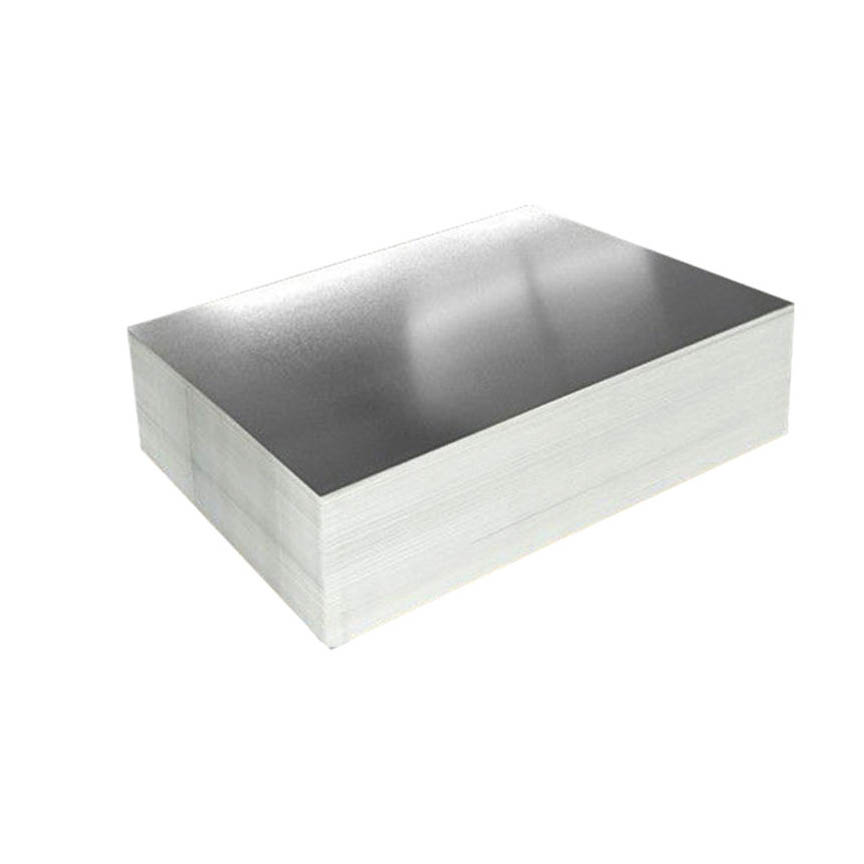

SMSTEELproducts display
